TruColor V5/V6 (PL-M2014R) RS232 Wiring
Supported Models
PL-M2014R, PL-M2014RV6, IDG-M2014RV6, PL-EMD-3-M2014-V6P1
Not sure if this is your model? Click here to find out which model you have.

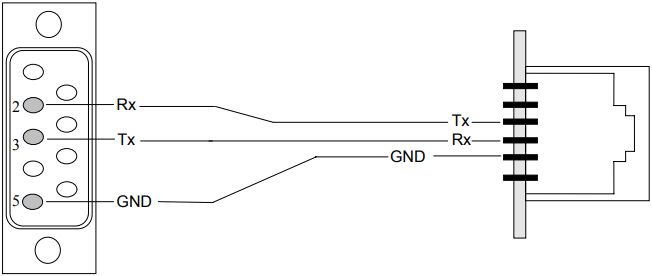

Wiring Assignments for RS232 Communication
Computer DB9 COM PORT (Host) Sign RJ11 Port (Client)
Computer DB9 COM PORT (Host) Sign RJ11 Port (Client)
