MQL - Which Model Do I Have?
Marque-Lite (Tri-Star)
*Discontinued product.
*Discontinued product.

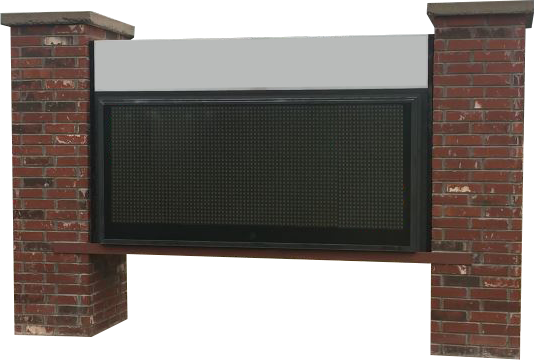

• Most all signs have been built into custom cabinets similar to the photo below.
• Pro-Lite is the manufacturer of only the LED sign itself. NOT the cabinet build. For information regarding the cabinet build or how to access the Pro-Lite sign, refer to the
original sign company that installed the sign on-premise.
original sign company that installed the sign on-premise.
Models by description.
3225 (2-Line sign, programmed by handheld remote)
4225 (2-Line sign, programmed by handheld remote)
4025 (2-Line sign, programmed by software)
48963 (4-Line sign, programmed by software)
4225 (2-Line sign, programmed by handheld remote)
4025 (2-Line sign, programmed by software)
48963 (4-Line sign, programmed by software)
Label on back of sign.
All Pro-Lite signs have an easily identifiable label on the backside of the sign.
*A model number located on the cabinet build itself will not be the sign model number. Accessing the inside of the cabinet will be required in order to retrieve the model number off the backside of the Pro-Lite sign.
*A model number located on the cabinet build itself will not be the sign model number. Accessing the inside of the cabinet will be required in order to retrieve the model number off the backside of the Pro-Lite sign.

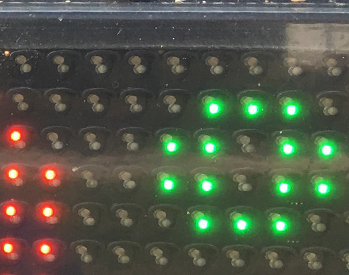

By LED per pixel count.
The model 3225 has 2 LED's per pixel.
Models 4225, 4025, and 48963 have 3 LED's per pixel.
4-Line Sign
The model 48963 is larger than all other models.
